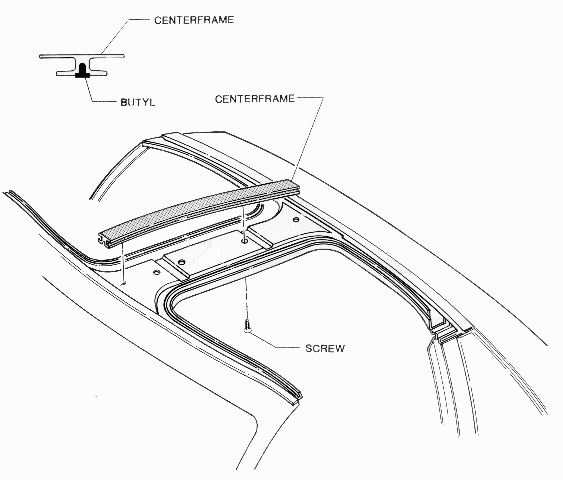

Centerframe Removal & Installation
Remove headliner prior to removal of center frame. Refer to
Using a philips head screwdriver, unscrew the five screws on the
underside of the frame assembly.
Lift the centerframe off of the frame assembly and clean off
butyl sealant from the center frame mounting area, also in the
slot on the underside of the center frame.
Apply a bead of butyl sealant into the underside slot in the
Reposition the center frame and fasten with previously removed
Install headliner, refer to page 14.
