A & B Pillar Interior Trim Caps Removal & Installation

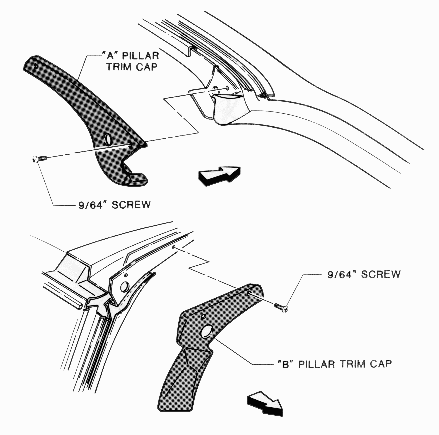

REMOVAL AND REINSTALLATION OF "A" & "B" PILLAR TRIM CAPS
Remove two short 9/64" screws at the face of the trim cap
and retain for reinstallation.
Remove one 9/64" screw from the bottom of the cap and retain
To remove cap pull outward.
Position the trim cap against the bracket and locate the two
screw holes at the upper face of the cap.
Replace two 9/64" screws into the upper two screw holes in
the face of the cap.
Replace one 9/64" screw into the bottom of the cap.
